If you need Class125 gate valve,Class150 gate valve,DIN3352 gate valve,please contact us

Product Introdution

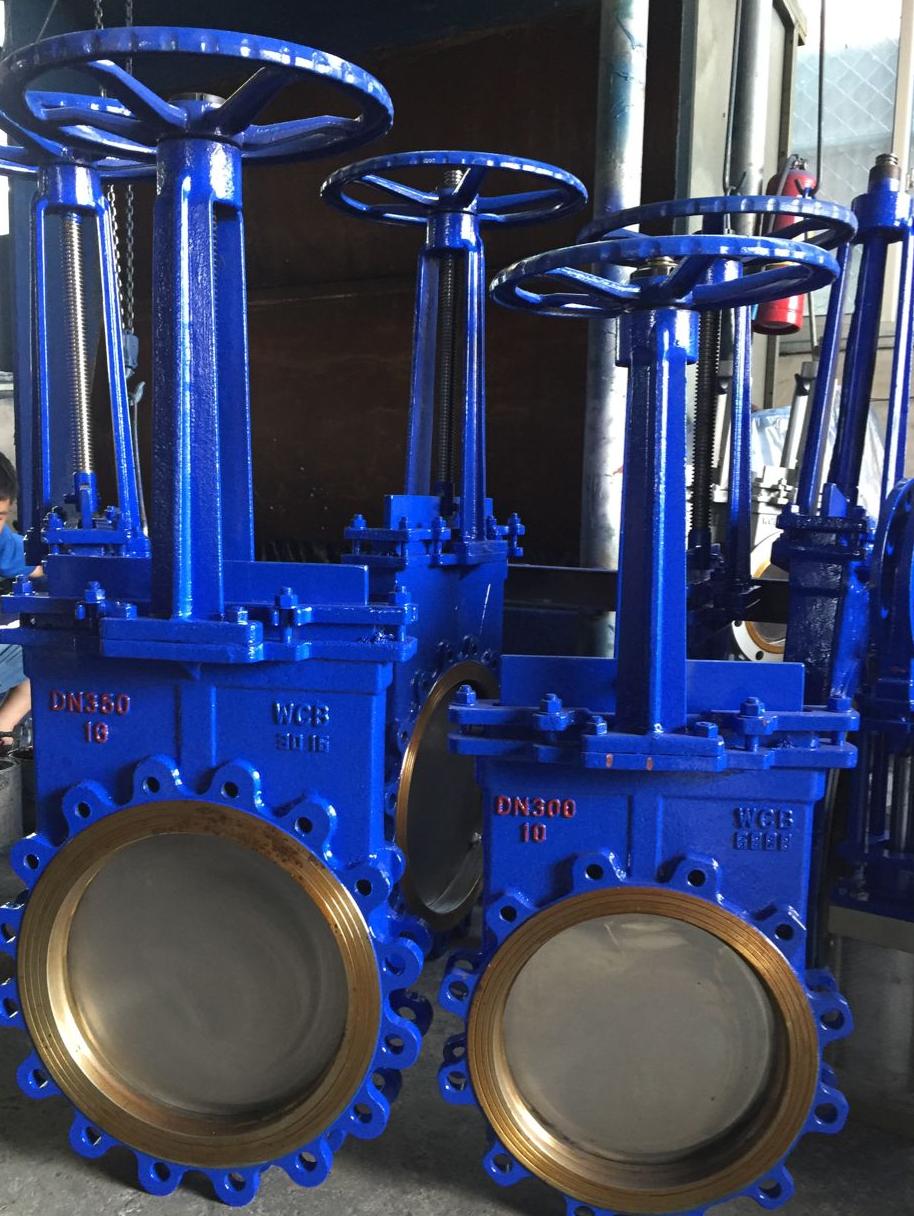

Gate valves normally have flanged ends which are drilled according to pipeline compatible flange dimensional standards. Our Gate valves are typically constructed from cast iron, ductile iron or cast carbon steel.
Gate valves are characterised as having either a rising or a non-rising stem. Rising stems provide a visual indication of valve position because the stem is attached to the gate such that the gate and stem rise and lower together as the valve is operated. Non rising stem valves may have a pointer threaded onto the upper end of the stem to indicate valve position, since the gate travels up or down the stem on the threads without raising or lowering the stem. Non rising stems are used underground or where vertical space is limited



Detailed Product Description:

Design and Manufacture: AWWA C509/ BS 5163, BS5150/ DIN 3352 / MSS SP-70
Face to Face: ASME B16.10, BS5163, DIN3202 F4, DIN3202 F5, BS EN558-1
Stem TypeNon rising / rising
Packing (Stuffing box gasket): Graphite or O-ring
Insepction: API598, BS EN12266-1
Flanges: ANSI B16.5, ANSI B16.1, EN 1092-2, BS4504, DIN2532, DIN2533
Size2"40" , DN40-DN1000
Hand wheel: Carbon steel stamped with coating
Pressure: PN10/PN16/PN25, Class125Class250 ,
Temperature: 0-80
Body and bonnet Material :GG25 / GGG40;  ASTM A126 ClassB, HT250; ASTM A536 65-45-12, 550-7;
Medium:Water: Water, oil and gas
